Every overhead line engineer has seen it – a pole shows signs of decay, yet the obvious question isn’t whether decay exists – it’s whether the pole can still safely do the job it was designed to do.
At EP Marine & Rail, that same engineering mindset runs across everything we do, from overhead line networks to critical marine infrastructure such as harbour structures and bollards, where structural integrity under load is equally fundamental. We never simply identify deterioration. We focus on whether sufficient structural capacity remains.
That’s exactly what residual strength tells us.
Condition does not define the decision
When we’re out in the field, we often see poles that already carry a “D” rating based on traditional inspection methods. In many cases, that rating has come from a combination of visual inspection and hammer testing. Teams have used that approach for decades, and it still has value as a first-line indicator. But it does not quantify how much sound timber actually remains, or show where deterioration sits within the length of the pole and particularly at the critical ground-line zone.
And that matters, especially now.
With increasing pressure on supply chains and ongoing wood pole shortages, replacement no longer serves as the default option it once was. Engineering teams now face a more difficult question:
Can this pole safely stay in service?
Residual strength is a structural capacity calculation
Every wood pole carries defined mechanical loads: conductor tension, wind loading, line angles, and network-specific configurations. Over time, the pole’s ability to resist them changes.
When we assess wood pole residual strength, we are not looking at condition in isolation. We are calculating whether the remaining sound timber still provides sufficient structural capacity to meet the original design requirements, including the required factor of safety.
In simple terms:
Does the pole still have enough strength to do the job it was designed for?
Why ground-line condition drives the engineering decision

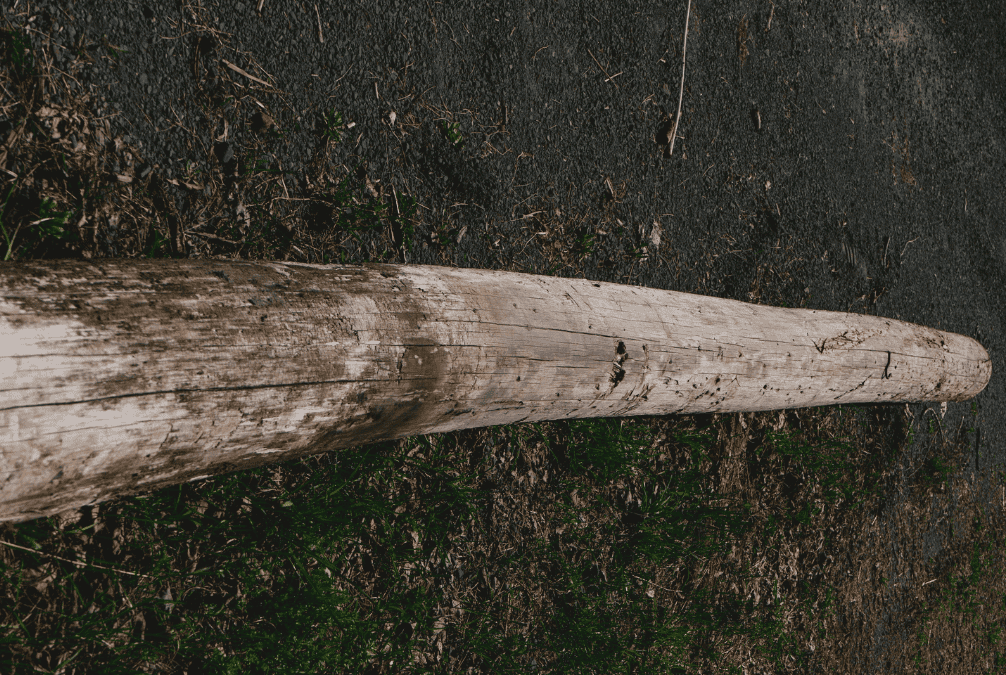

When we’re out on site and physically inspecting poles, the most critical zone is nearly always the same: the ground line and just below it.
This is where the majority of decay develops, and where bending stresses are highest. It is also the point that most strongly influences residual strength.
So while surface condition and hammer testing can raise early flags, they cannot replace a quantified understanding of what is happening in this zone.
That is where accurate, internal measurement becomes essential. With our specialist software, we can also visually interpret and map where decay is occurring, giving engineers a far clearer picture of its extent and location.
From inspection to engineering measurement
To address this, we developed PASS: Pole Analysis and Structural Security.
We created PASS after more than 20 years working alongside DNOs and observing the limitations of traditional assessment methods when applied at scale. We needed a consistent way to measure what actually happens inside the pole, particularly at and below ground line.
PASS allows us to physically measure – and visually interpret using our software – both external and internal decay in the critical zone where over 95% of deterioration occurs. This removes reliance on interpretation alone and replaces it with measurable, repeatable data.
We then use that data to calculate a Residual Strength Value (RSV) for each pole.
How we use PASS in practice
When we’re on site, we assess each pole and record its structural data into our field system. We then compare the calculated residual strength against the client’s specified factor of safety requirements for that asset class and loading condition.
From there, each pole is classified as:
- fit for continued service
- suitable for treatment or reinforcement
- or requiring replacement
Where poles remain fit for purpose, we can also apply HSE-approved boron treatment in line with client requirements, helping to prevent further decay progression.
Where poles require reinforcement, we can strengthen them using our multi-tube reinforcement system which requires no downtime and can extend pole life by up to 20 years.
Real-world outcomes from field deployment
In a recent inspection programme, we assessed a batch of 367 “S” poles issued for structural analysis.
Using PASS and residual strength calculations:
- 79% (290 poles) remained fit for continued service, with an expected minimum remaining life of 10 years, and were returned to service
- 6% (23 poles) (previously identified as “D” poles) were recommended for reinforcement using our multi-tube system
- The remaining poles were classed for replacement based on structural capacity limits
Overall, 85% (313 of the original 367 “S” poles) were retained in service following engineering assessment.
The outcome significantly reduced unnecessary replacement, while maintaining compliance with safety and design requirements.
Why this approach changes the decision-making model
Traditional inspection methods often drive conservative decisions. When uncertainty exists, teams default to replacement.
But in a world where:
- we see shortages of wood pole supplies
- network reliability targets are tightening
- and cost efficiency is under constant pressure
that approach no longer works at scale. By directly measuring decay and translating it into residual strength, we give engineers something more valuable than condition data:
We give them structural certainty.
Whether we are working on overhead line networks or marine infrastructure, the principle remains the same. We base decisions on whether the structure still has sufficient capacity to perform its function safely.
Final thought
A pole doesn’t fail because it has decay – it fails when it no longer has the structural capacity to carry its load safely.
That is what we measure. That is what PASS enables us to quantify. And that is what determines whether a pole is able to safely stay in service.
